Stock Items - Style UB-137 Heavy, Unique Industries, Inc.

Stock - Standard Pipe Size U-Bolts

Style UB - 137 Heavy

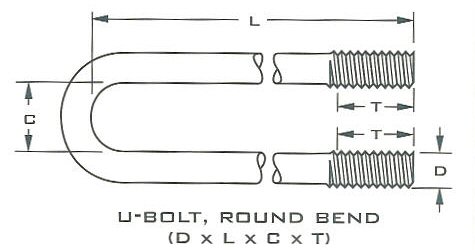

U-Bolt (Round)

Bulk - No Nuts

Stock: Plain, H.D.G.

Unique Pipe Size	Rod Dia (D)	C	L	T	Wt. Per C
1/2	3/8	15/16	3 1/4	2 3/8	19
3/4	3/8	1 1/8	3 5/16	2 3/8	20
1	3/8	1 3/8	3 7/16	2 3/8	21
1 1/4	1/2	1 11/16	3 3/4	2 3/8	41
1 1/2	1/2	2	4	2 1/2	44
2	1/2	2 7/16	4 1/2	2 1/2	50
2 1/2	5/8	2 15/16	5 1/4	3	91
3	5/8	3 9/16	5 13/16	3	102
3 1/2	5/8	4 1/16	6 1/4	3	111
4	5/8	4 9/16	6 13/16	3	120
5	5/8	5 5/8	7 13/16	3	138
6	3/4	6 3/4	9 1/2	3 3/4	251
8	3/4	8 3/4	11 1/2	3 3/4	304
10	7/8	10 7/8	13 13/16	4	485
12	1	12 7/8	16 1/16	4 1/4	770
14	1	14 1/8	17 5/16	4 1/4	830
16	1	16 1/8	19 5/16	4 1/4	927
Unique Pipe Size	Rod Dia (D)	C	L	T	Wt. Per C
